Disassembly info for Nokia 6600!

First, tools...

I used small screwdriver(*sd), torx 6(*t6) and a small pin(*sp) for prying the cover up...

Turn off phone, remove backcover, battery, mmc card and your simcard.

Insert the small screwdriver in one of these whole and "feel" the little tap in there and then push, you will see the cover lifting a bit, next take the pin and start at the bottom of the phone, pushing it in between the cover and the phoneshell, remember to keep constant pressure on the sd while prying along the bottom and lifting the cover taps.

When you get all around the phone to the next whole(red circles), then remove the sd from the other whole and insert it to the next. Apply pressure, cover will lift, and you can pry it open with the sp. Again remove the sd from the whole and use it to lirk the cover moving towards the top of the phone, one tap at the time, doing it on both sides.

This should be the result after 10 mins work.

Now use the t6 for unscrewing the screws located here:

After unscrewing the screws, four taps are holding the screen part and the PCB in place these are located here:

Use either the sd or sp to lirk down the spaces between shell and screen part. A little click tells you when you hit the tap, doesn't require any force, just find the tap and apply a little pressure... You should now be looking at this:

For removing the PCB you need to turn it so that the PCB is lying on the table and gently press with your fingers on the PCB, in the holes for the mmc and sim card spaces.

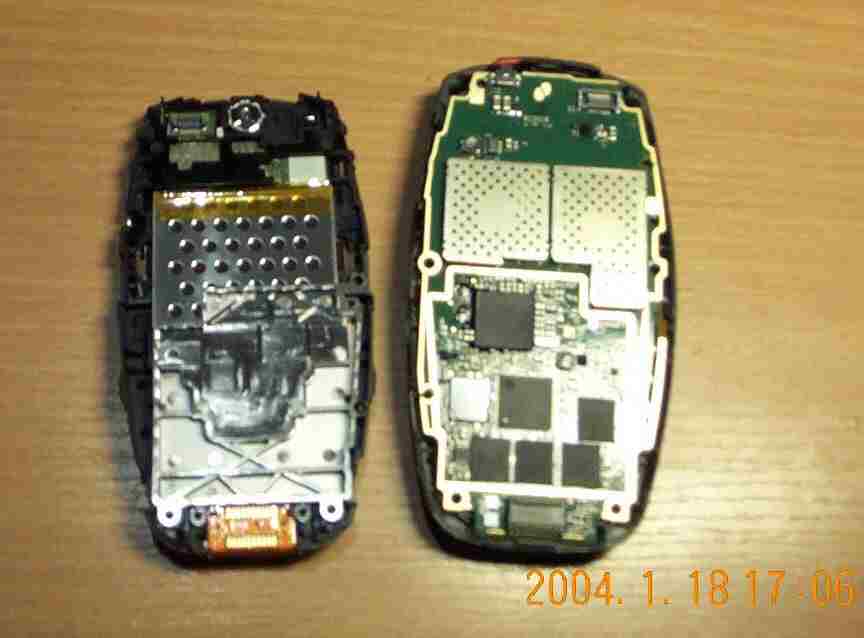

Now you should have this:

You have now disassembled your nokia 6600! :)
